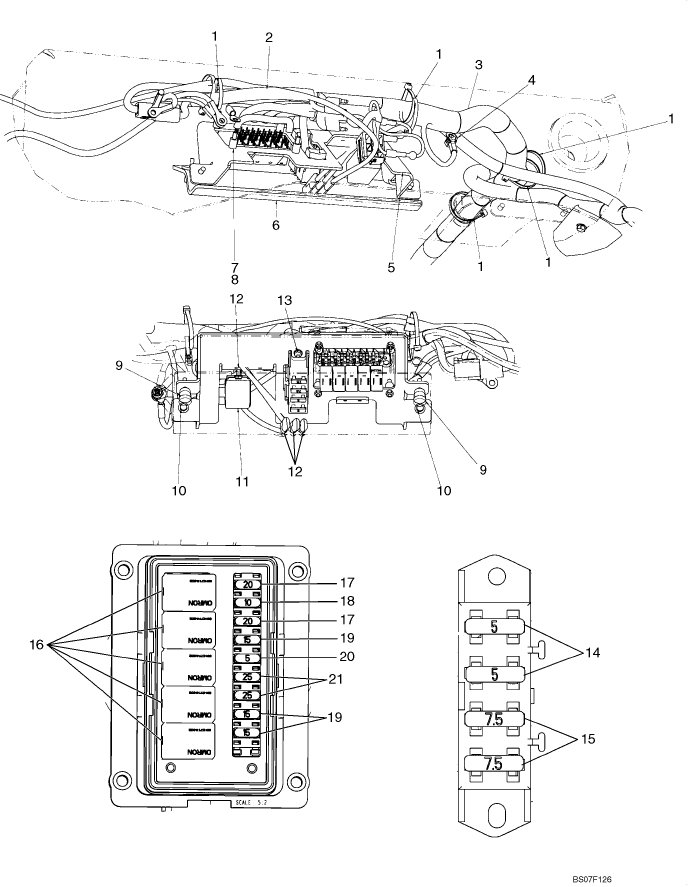

Remove ground wire connections 1 and wire harness clamps 2 from the transmission gear 2 box.

New holland ls180 fuse box diagram. I disconnected the green and black wire and it stopped blowing fuses need to know what it controls unit still runs w o it hooked to acc side of ign. If you have items stored behind the seat the seat wiring harness can get damaged causing a short circuit and the fuse will blow. New holland ls180 b ls185 b ls190 b skid steer loader lt185 b lt190 b track model loader service repair manual eu. The head up display will not turn on when you sit on the seat.

New holland l180 l185 l190 c185 c190 skid steer loader compact track loader service manual na. Ls180 skid steer loader 09 99 12 07 lx465 skid steer loader 04 94 09 99. New holland skid steer wiring diagram wiring diagram is a simplified enjoyable pictorial representation of an electrical circuit it shows the components of the circuit as simplified shapes and the capacity and signal friends between the devices. If it was the belt micro it should have started.

I will have to remove the cables like you said and jump directly to them and try to start it up i sure hope that works as i figured i can unhook the lift cylinder and raise the arms up with the nieghbors backhoe high enough to get. Does anyone have a wiring diagram. One supplies power to the seat switch and seat belt. At the fuse the power is divided into two circuits.

Ls180 eic fuse blown posted. 7981166 new holland ls180 ls190 service manual free ebook download as pdf file pdf text file txt or read book online for free. I have read of a diode in the engine bay fuse box on the newer ones that. If those are all good remove the cover from the relays to the left of the fuse box.

I have a 2000 new holland ls180. What i would do is remove the cover from the engine fuse panel and check all of the fuses in there. The other supplies one of the power sources for the eic. New holland tl70 tl80 tl90 tl100 fuse box diagram.

New holland lists one online for 112 but i thought i would call napa and see if they have a better deal on one. If i try to crank it will start firing on the cylinders but as soon as the key turns back it cuts off. The other key here is that it won t crank with the start run switch flipped to service mode. Machine is a new holland ls170 2006 rubber tire skid steer thanks.

Cl25 thomas ford compact skid loader 01 83 12 86. Fuse 15 amps headlights.
