2000 Mercury Cougar Fuse Box Diagram

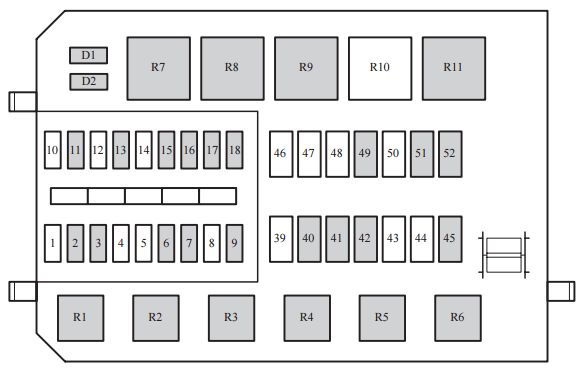

Symboldescriptionc50k4 fuel pump relayc51k163 pcm power relayc455k32 a c wide open throttle wot relayc53k36 low beam relayc54k37 high beam relayc69k33 horn relayc904v7 a c compressor clutch diodec61v8 starter relay diodec52k22 starter relayc430k46 high speed engine cooling fan relayc432k45 engine cooling fan relayc431k5 daytime running lamps drl relay mercury cougar 2000 fuse panel board.

2000 mercury cougar fuse box diagram. Fuse panel layout diagram parts. 2000 mercury cougar fuse box diagram. In the passenger compartment fuse panel. Have intearea lights door trunk power work.

In this article we consider the eighth generation mercury ford cougar produced from 1999 to 2002. I need a diagram for a 99 mercury cougar internal fuse box to get your diagram go to the link below. Fuse box in engine compartment power distribution box. The link will also give you the manual of the car 015 012 015 012.

View and download mercury cougar 2000 owner s manual online. On page 156 will show you the fuse box. But no head lights or any power to the rest of the car. Need free fuse box diagram for a 2000 mercury cougar tryed to install a car stereo hit a bare wire and knocked out my power to the car.

Page 173 roadside emergencies power distribution box to check or replace a fuse or a relay. 2000 mercury cougar fuse box map. Mercury cougar 1999 2002 use box diagram location and assignment of electrical fuses and relays for mercury cougar ford cougar 1999 2000 2001 2002. 1999 2000 2001 2002.

Mercury cougar 8th generation 1999 2002 fuse box diagram. Here you will find fuse box diagrams of mercury cougar 1999 2000 2001 and 2002 get information about the location of the fuse panels inside the car and learn about the assignment of each fuse fuse layout and relay. 27 is a blue color 15 amp fuse for the cigarette lighter you can view the 2000 mercury cougar owners manual online at.
